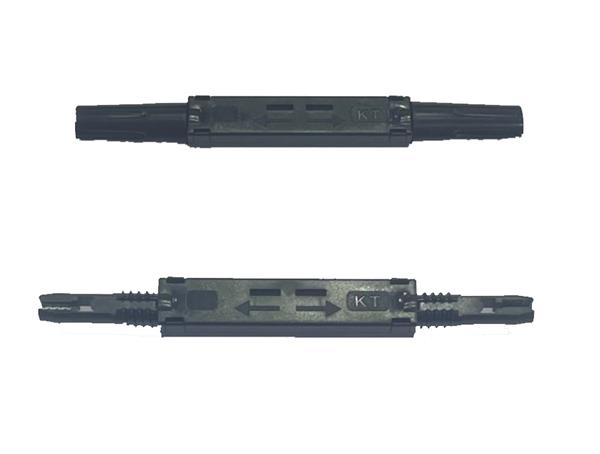

Indoor cable cold splice indoor cable docking special telecommunication line.
The alloy V groove design, fiber Pre Embedded field assembly connection, the dual end polish, the special preservation techniques of refractive index (matching) liquid, the splicer is of high accuracy (98%), high strength (100N), great stability (insert loss<0.1dB, return loss>50dB) and durable life (10 years).
•Application for cable subscriber troubleshooting
•Applications for optical subscriber cables
•Compact size, suitable for installation of tight-buffered optical subscriber cables with dimensions [2.0x3.0]mm and straight installation in splice closures or protective sheaths.
•Precision metallic alloy components with co-axial self centering, excellent and durableoptical property
•Axially firm fitting of optical fibers, reducing any performance degradation due to loss inthe matching gel
•Uninterrupted fitting and connecting technology, hence signals are free of impact fromexternal force
•The naked fiber, tight buffer and cable, etc., can fully meet the environmentalrequirements from the terminals customer
•Integrated protection of the casing to withstand harsh outdoor environment
• High success rate and easiness in installation with average splicing time of 150 sec
•Lock and open fiber optic on the mechanical splicer
•Material: The body is printed with information [manufacturer logo, serial number according to batch] and does not fade over time.
•The have optical fiber guiding position features a large, bright-colored funnel-shaped design, suitable for easy optical fiber installation, have size ≥1mm
•Have optical fiber guiding slot and cable rest allowing in put cable and output cable easy.
